SerialDebug Class Reference

Debug class that allows a finer control over serial debug. More...

#include <Debug.h>

Public Member Functions
	SerialDebug (HardwareSerial *serial=&Serial)
void	print (String st, Levels level)
	Sends a string to the Serial port with a debug level, only if it is lower than the setted one.
void	println (String st, Levels level)
	Sends a line to the serial port with a debug level, only if it is lower than the setted one.
void	print (String st)
	Sends a debug string to the serial port, only debug is accepted.
void	println (String st)
	Sends a debug line to the serial port, only debug is accepted.
template<class T >
void	print (T any, Levels level)
template<class T >
void	println (T any, Levels level)
template<class T >
void	print (T any)
template<class T >
void	println (T any)
void	delayd (int t)
	Delay used only in debug.
void	setLevel (Levels lvl)
	Sets the level to be used for the debug.
void	setSerial (HardwareSerial *serial)

Detailed Description

Debug class that allows a finer control over serial debug.

Any message can have a level given by the Levels enum. Only messages with level lower than the one set by using setLevel(Levels lvl) are printed. The level is also written before the message in the serial output so even when all levels are being printed it's easy to distinguish and eventually remove unnecessary output.

Constructor & Destructor Documentation

SerialDebug()

SerialDebug::SerialDebug ( HardwareSerial *  serial = &Serial )

inline

Member Function Documentation

delayd()

void SerialDebug::delayd

(

int

t

)

Delay used only in debug.

This should be used to avoid errors while running in competition.

Parameters

t	Time to wait in microseconds.

print() [1/4]

void SerialDebug::print

(

String

st

)

Sends a debug string to the serial port, only debug is accepted.

The debug level will be sent only if it's a new line.

Parameters

st	String to print.

Here is the call graph for this function:

print() [2/4]

void SerialDebug::print	(	String	st,
		Levels	level
	)

Sends a string to the Serial port with a debug level, only if it is lower than the setted one.

The debug level will be sent only if it's a new line.

Parameters

st	String to print.
level	Debug level.

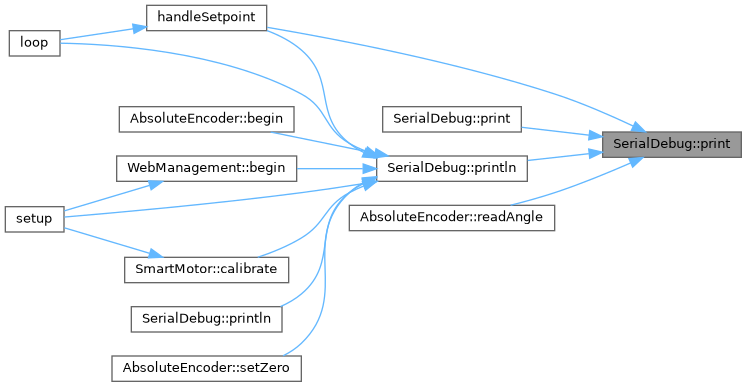

Here is the caller graph for this function:

print() [3/4]

template<class T >

void SerialDebug::print ( T  any )

inline

Here is the call graph for this function:

Here is the caller graph for this function:

print() [4/4]

template<class T >

void SerialDebug::print ( T  any, Levels  level  )

inline

Here is the call graph for this function:

Here is the caller graph for this function:

println() [1/4]

void SerialDebug::println

(

String

st

)

Sends a debug line to the serial port, only debug is accepted.

The debug level will be sent only if it's a new line.

Parameters

st	String to print.

Here is the call graph for this function:

println() [2/4]

void SerialDebug::println	(	String	st,
		Levels	level
	)

Sends a line to the serial port with a debug level, only if it is lower than the setted one.

The debug level will be sent only if it's a new line.

Parameters

st	String to print.
level	Debug level.

Here is the call graph for this function:

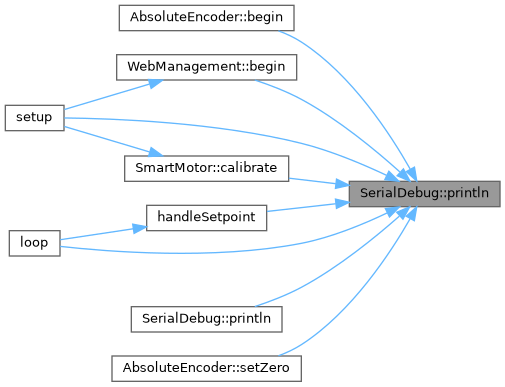

Here is the caller graph for this function:

println() [3/4]

template<class T >

void SerialDebug::println ( T  any )

inline

Here is the call graph for this function:

Here is the caller graph for this function:

println() [4/4]

template<class T >

void SerialDebug::println ( T  any, Levels  level  )

inline

Here is the call graph for this function:

Here is the caller graph for this function:

setLevel()

void SerialDebug::setLevel

(

Levels

level

)

Sets the level to be used for the debug.

Parameters

lvl	Debug level.

Here is the caller graph for this function:

setSerial()

void SerialDebug::setSerial

(

HardwareSerial *

serial

)

---

The documentation for this class was generated from the following files:

• lib/Debug/src/Debug.h
• lib/Debug/src/Debug.cpp
