TractionEncoder Class Reference

Class used to read data from traction rotary encoders. More...

#include <TractionEncoder.h>

Public Member Functions
	TractionEncoder (byte pin_a, byte pin_b, Filter< int > *filter=NULL, bool invert=false, PIO pio=pio0)
	Creates object.
void	begin ()
	Sets the encoder's pins and attach the interrupt.
int	getSpeed ()
	Returns the last detected speed.
int	getSteps ()
	Returns the number of steps since the class was initialized.

Detailed Description

Class used to read data from traction rotary encoders.

Constructor & Destructor Documentation

TractionEncoder()

TractionEncoder::TractionEncoder	(	byte	pin_a,
		byte	pin_b,
		Filter< int > *	filter = NULL,
		bool	invert = false,
		PIO	pio = pio0
	)

Creates object.

Parameters

pin_a	Pin A of the encoder.
pin_b	Pin B of the encoder.
filter	Filter to apply to the encoder's output. NULL if no filter is needed.
invert	Invert the encoder's output.
pio	PIO to use. Each PIO can handle up to 4 encoders.

Member Function Documentation

begin()

void TractionEncoder::begin

(

)

Sets the encoder's pins and attach the interrupt.

Here is the caller graph for this function:

getSpeed()

int TractionEncoder::getSpeed

(

)

Returns the last detected speed.

Returns

The speed in centiRPMs.

Here is the call graph for this function:

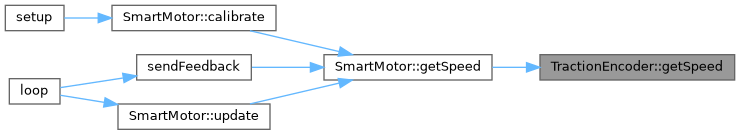

Here is the caller graph for this function:

getSteps()

int TractionEncoder::getSteps

(

)

Returns the number of steps since the class was initialized.

Returns

The number of steps.

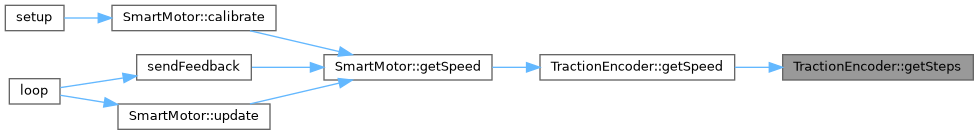

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• lib/TractionEncoder/src/TractionEncoder.h
• lib/TractionEncoder/src/TractionEncoder.cpp
